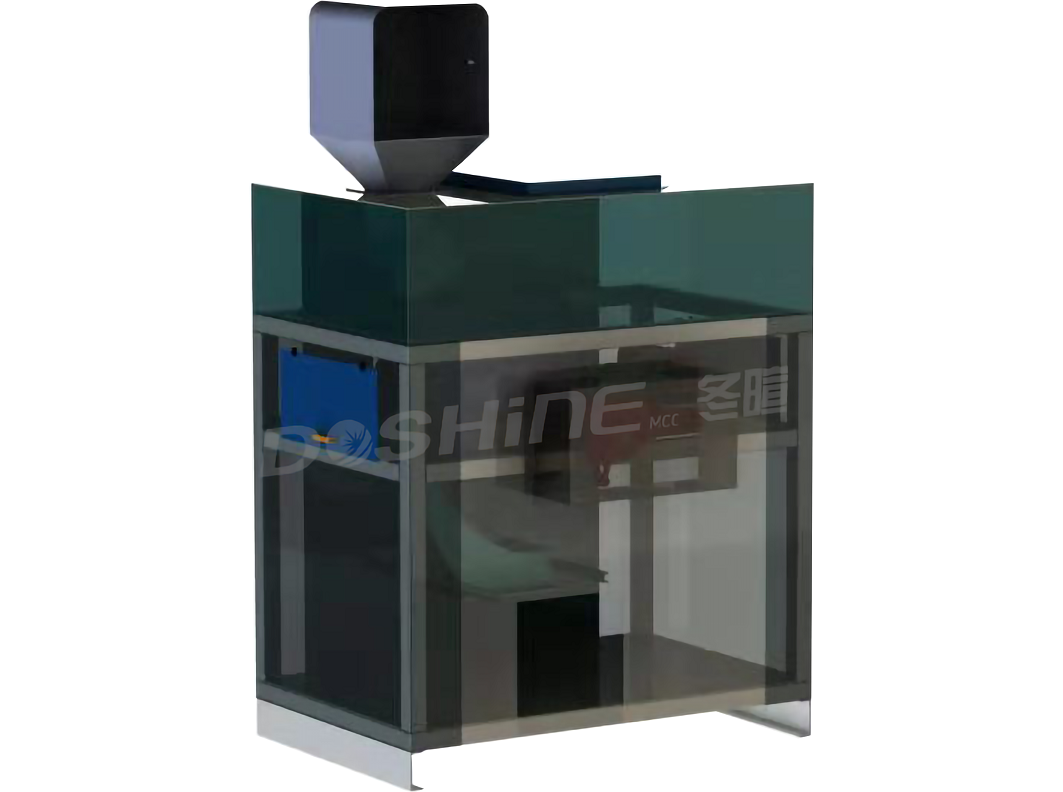

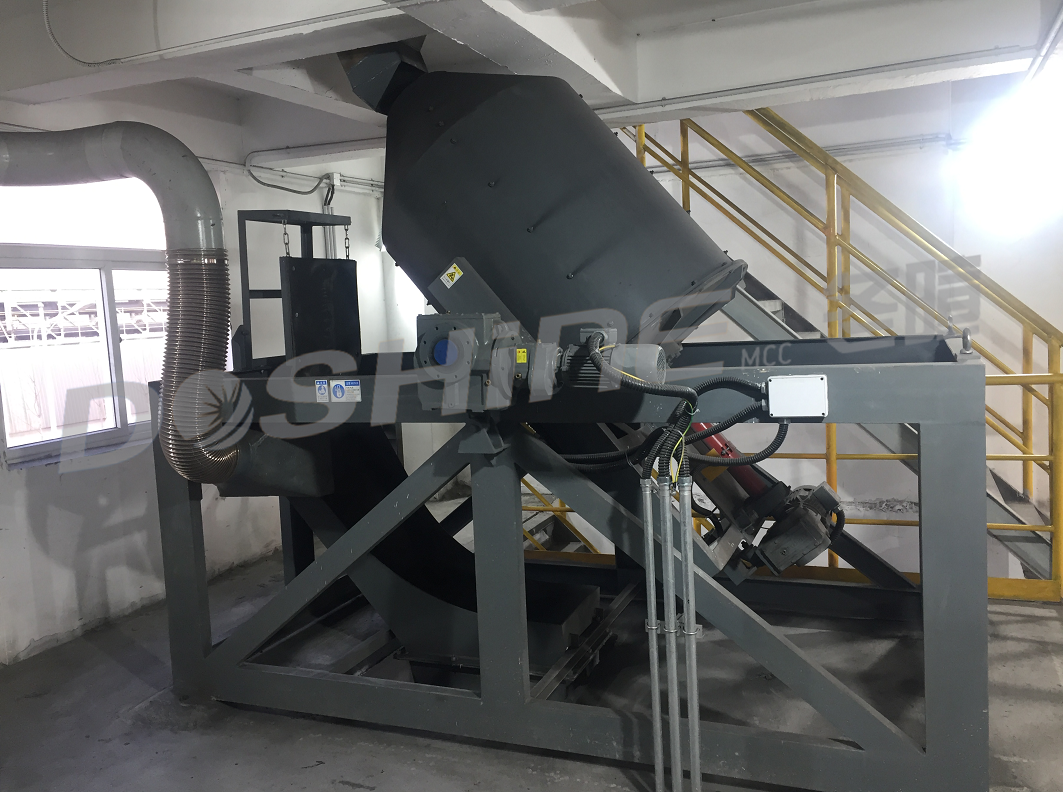

Automated drum

Product introduction

The automatic drum is our company's digesting and absorbing advanced technology at home and abroad. It has been improved and developed, which is specially used for the drum strength test of samples. It can realize the automatic drum entering, running and druming of materials.
DJZG type drum meets the requirements of national standard GB8209-1987 and ISO3271-1975, and is mainly used for the mechanical strength test of sinter and pellets for blast furnace at normal temperature.
DSZG type drum meets the requirements of national standard GB/T2006-1994 and ISO556-1980, and is mainly used for mechanical strength inspection of coke.

Application areas: ports, steel, etc.
TECHNICAL PARAMETER
Adapting materialsSinter, pellets, coke, etc.
NameSintering (Pellet) DrumsCoke drums
Drum diameter1000*500*81000*1000*8
Speed25±1r/min25±1r/min
Revolutions200 turns100 turns
Body materialAbrasion resistant steelAbrasion resistant steel
Power2.2kw+0.18kw2.2kw+0.18kw
Power380V 50Hz7380V 50Hz
