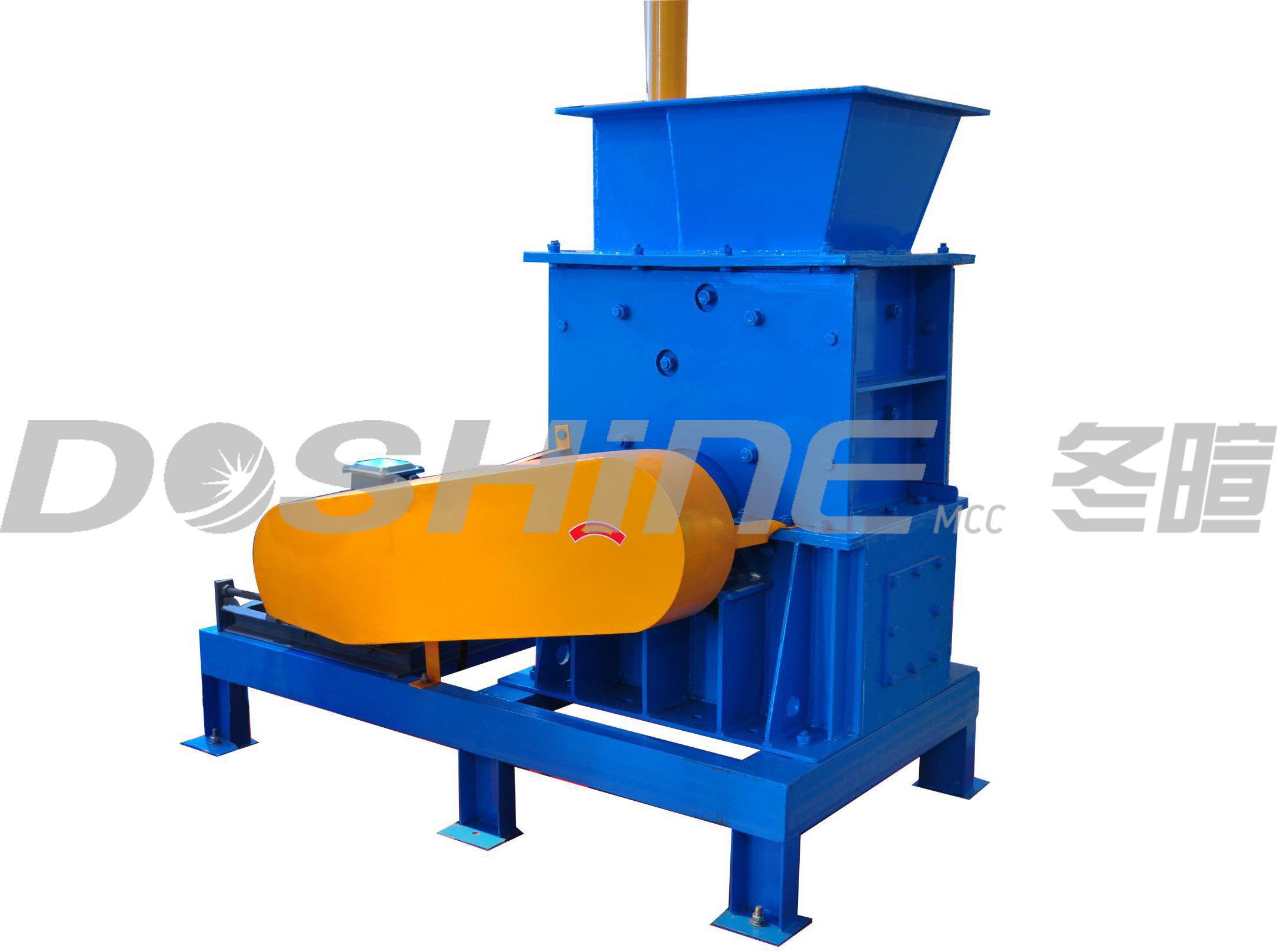

Ring hammer crusher
Product introduction
Designed for sampling systems, the DWP Series Ring Hammer Crusher features excellent crushing performance and unique anti-clogging. It is mainly used for the crushing of coal, coal gangue, coke, loose limestone and other materials with compressive strength not exceeding 150Mpa, especially suitable for fine crushing of materials.
The adjustment of the discharge particle size is achieved by adjusting the gap between the tooth plate and the ring hammer.
TECHNICAL PARAMETER
| Adapting materials | coal, coal gangue, coke, loose limestone, etc. | ||
|---|---|---|---|
| Rotor Specifications | 400×400mm | 400×300mm | 300×200mm |
| Maximum feed size | ≤150mm | ≤150mm | ≤50mm |
| Processing amount | 8t | 6t/h | 2t/h |
| Discharge port adjustment range | 13-30mm | 6-30mm | 3-13mm |
| Crushing efficiency | ≥95% | ≥95% | ≥95% |
| Adapt to moisture | ≤15% | ≤15% | ≤15% |
| Power | 15kw | 7.5kw | 5.5kw |
| Power | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Technical features
The dredging device is configured to prevent the blockage of the wet adhesive material.
The hammer head is made of ZGMn13, which is wear-resistant and has a long service life.
The sieve bar is alloy steel. After forging and special heat treatment, it has long service life and impact resistance.
The shaft end is provided with a zero speed switch, and a fault can be alarmed in time.
The hammer head is made of ZGMn13, which is wear-resistant and has a long service life.
The sieve bar is alloy steel. After forging and special heat treatment, it has long service life and impact resistance.
The shaft end is provided with a zero speed switch, and a fault can be alarmed in time.
