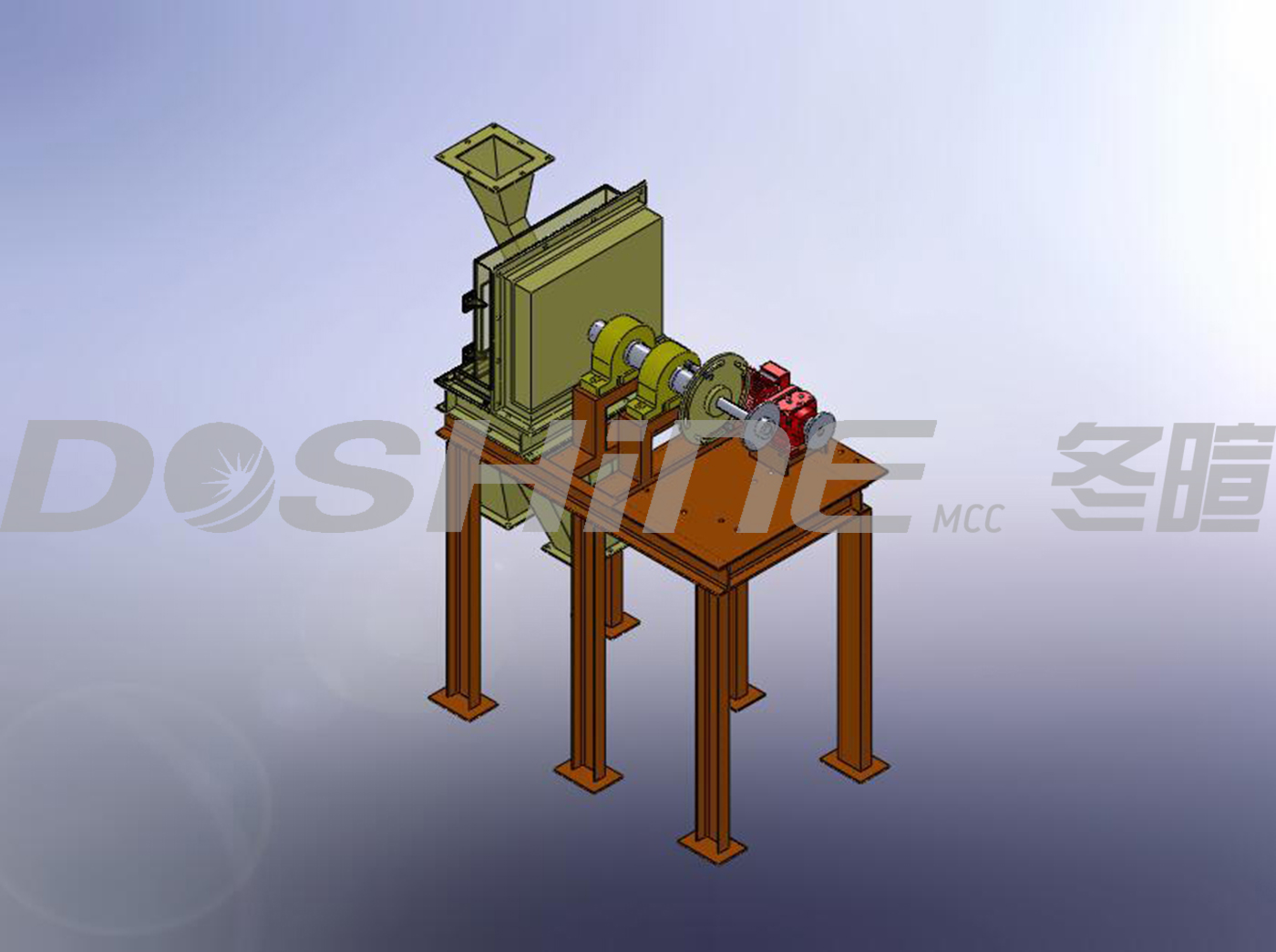

Vertical rotary shrinking machine
Product introduction
The design and manufacturing standards for the DLF vertical rotary reduction machine are in compliance with the ISO TC102 series of standards. The degree of opening and the number of reductions can be adjusted to meet the functional requirements of the corresponding facility process.
Protective measures: Stop limit protection, interlock protection, safety cover for driving parts, and other protective devices that must be included to meet the requirements of the corresponding specifications.
TECHNICAL PARAMETER
| Adapting materials | Iron ore, sinter, pellets, coke, coal, etc. | ||
|---|---|---|---|
| Cutting method | Vertical Rotary Disc | ||
| Cutting speed | 48r/min | ||
| Scale ratio | 1:4 (adjustable) | ||
| Quality variation coefficient CV | <5% | ||
| Tracing speed deviation: | ±5% | ||
| Cutter Material | High-alloy alloy | ||
| Adapt to moisture | ≤15% | ||
| Power | 0.37kw | ||
| Power | 380V 50Hz | ||
