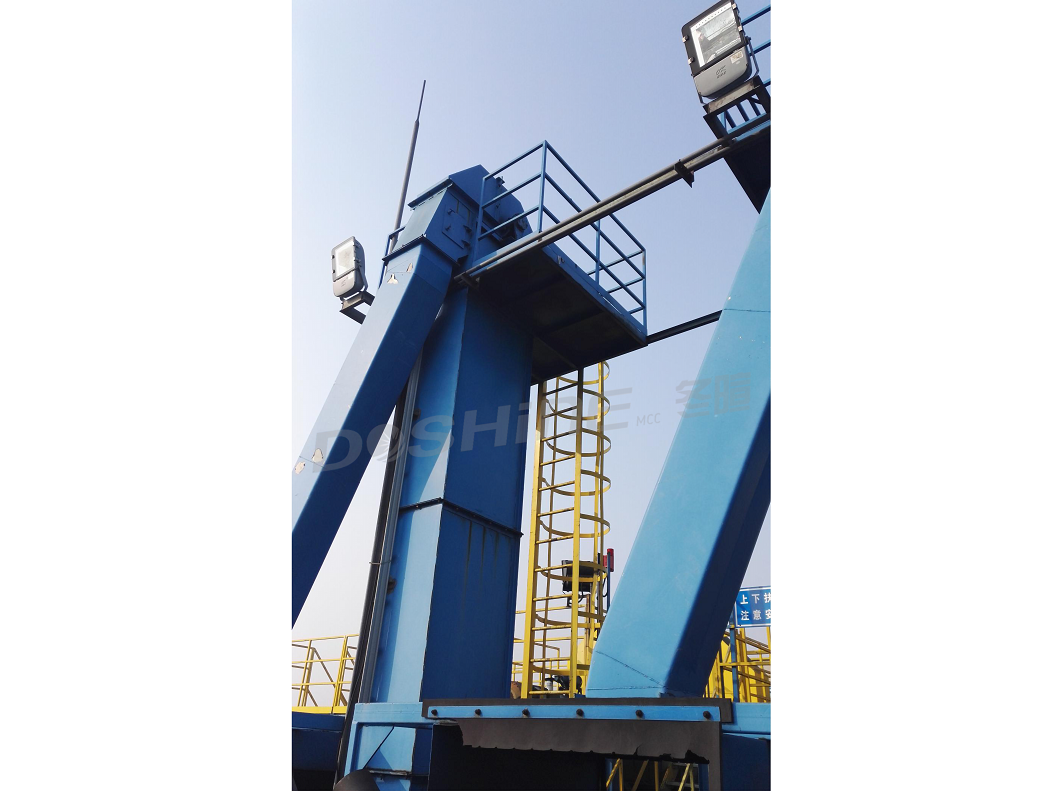

Bucket elevator
Product introduction
The DT bucket elevator is used as the main equipment for returning the main belt as the residual material in the sample preparation system. The structural features are made of nylon belt as the traction member for vertical lifting. The unloading method is centrifugal-gravity mixing discharge.
It is suitable for the lifting of granular or small pieces of non-abrasive or semi-abrasive materials. With good sealing performance, the whole machine runs smoothly.
TECHNICAL PARAMETER
| Adapting materials | Coal, etc. | ||
|---|---|---|---|
| form | Continuous bucket | ||
| hopper material | Carbon Steel/Stainless Steel | ||
| lift height | 2-25m | ||
| bucket elevator speed | 1.4m/s | ||
| Export | 9m3/h | ||
| Power | 3kw | ||
| Power | 380V 50Hz | ||
Technical features
The inlet and outlet ports and the hopper are all rounded to ensure the adhesion of wet and sticky materials;
It is equipped with a zero-speed detection switch to effectively detect the slippage, breakage and possible blockage of the traction belt.
It is equipped with a zero-speed detection switch to effectively detect the slippage, breakage and possible blockage of the traction belt.
