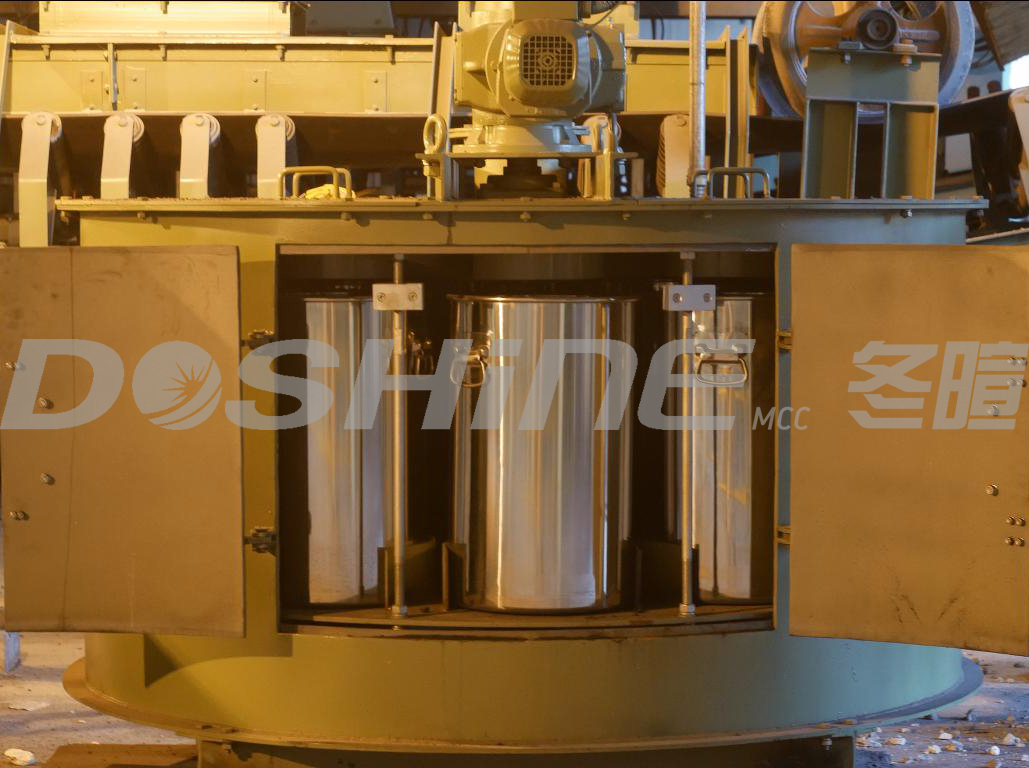

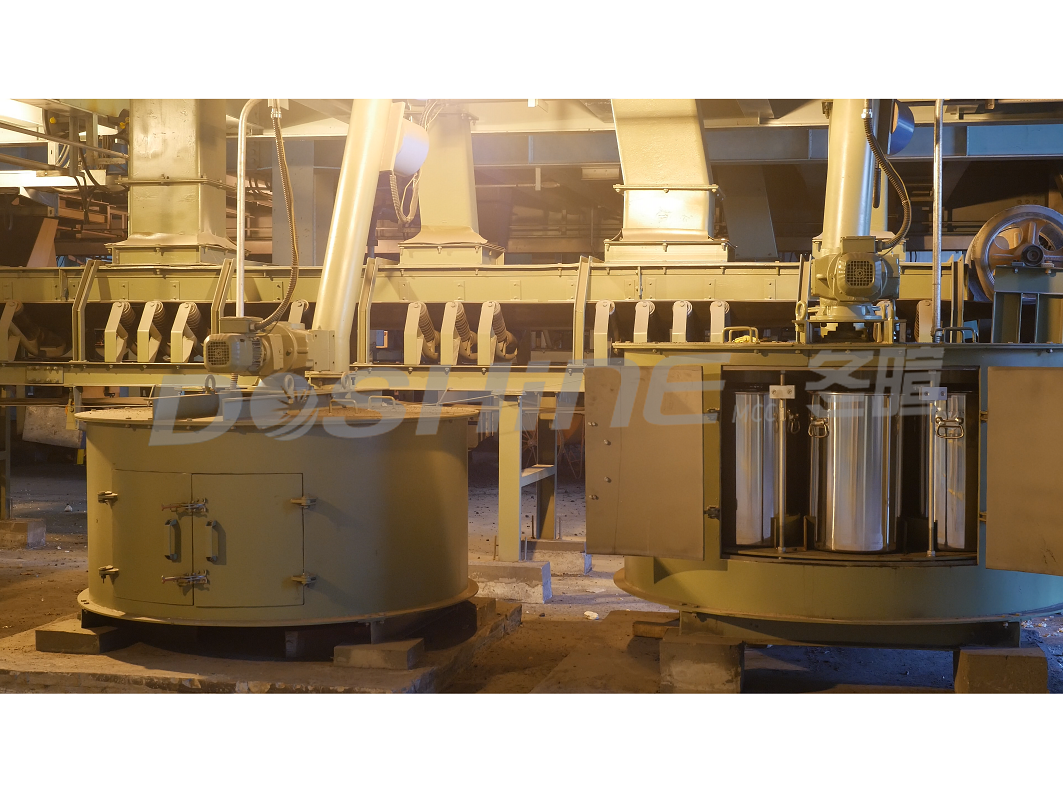

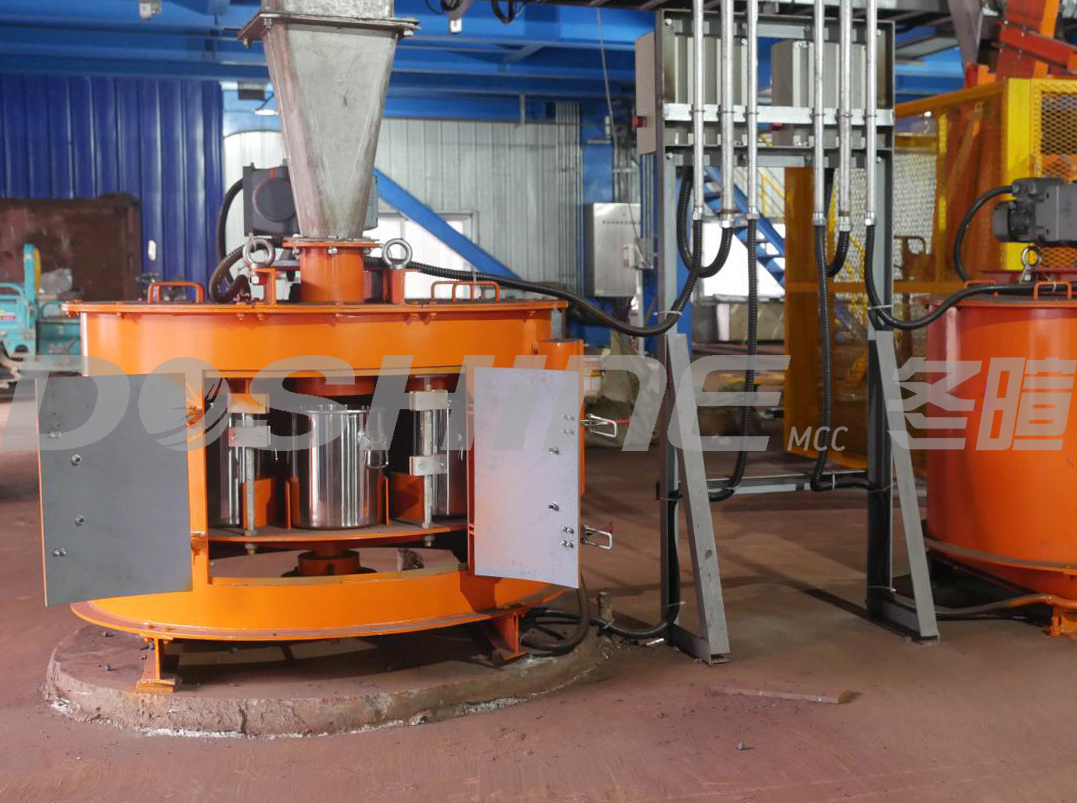

Sample collector
Product introduction
The DYJ type sample collector is a centrally driven turntable type. It is mainly used for the collection and storage of final samples in the mechanical automated sample preparation system. The sample collector is multi-tank and is controlled by a system program to operate the motor. The sample collector's control system automatically recognizes the order of the sample cans and has the ability to alert in advance to avoid mixing.
Applications: Ports, electricity, coal, chemicals, etc.TECHNICAL PARAMETER
| Adapting materials | iron ore, sinter, pellets, coke, coal, mixed ore | ||
|---|---|---|---|
| form | Center Drive Dial Type | ||
| Collecting the barrel volume | 8L/10L/12L/25L | ||
| Number of collection buckets | 4-12 only | ||
| Collection barrel material | SUS304 | ||
| Power | 0.18kw | ||
| Power | 380V 50Hz | ||
Technical features
Fully enclosed to minimize moisture loss.
Non-contact proximity switch control, safe and reliable.
One piece of equipment can be used for sample collection in different batches of different coal types.
The sample tank is convenient to pick and place.
Non-contact proximity switch control, safe and reliable.
One piece of equipment can be used for sample collection in different batches of different coal types.
The sample tank is convenient to pick and place.
