ore

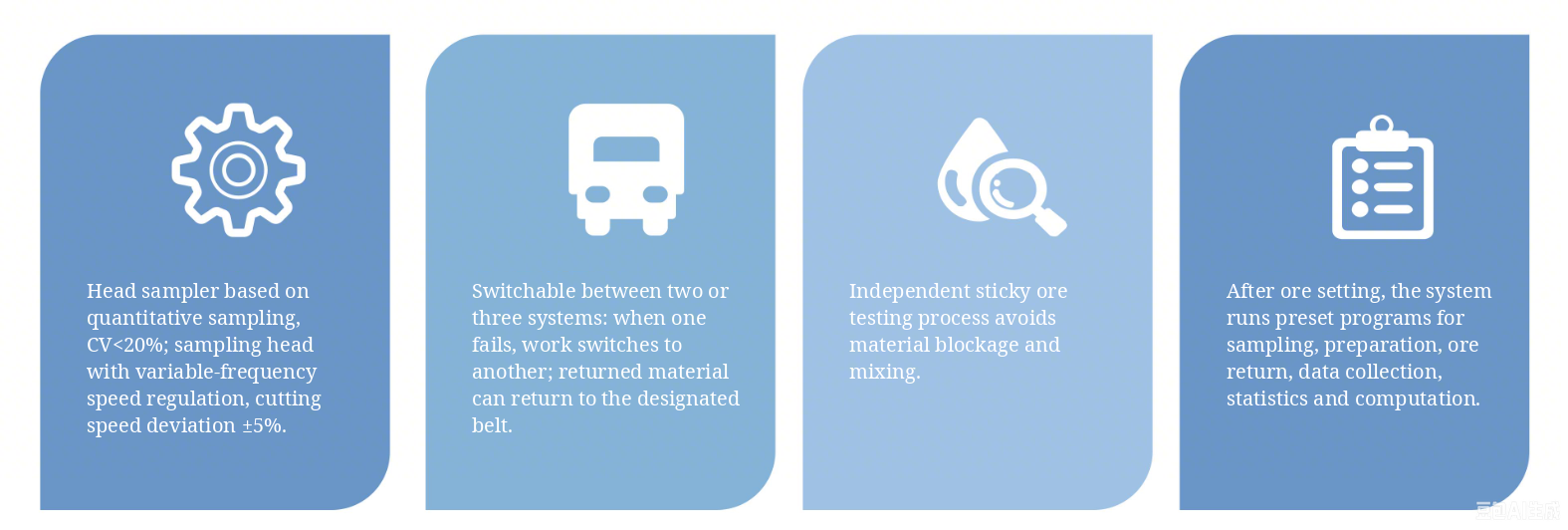

Technical features

          The sampling and preparation system of commodity inspection type iron ore can automatically complete the input iron ore sampling, online particle size analysis, moisture sample preparation, pellet physical sample preparation, chemical sample preparation and ore return.

          Manual sample preparation room can be configured to prepare - 5mm chemical sample into chemical analysis sample for moisture determination, fine particle size determination, physical property test and manual sample preparation after failure of automatic mechanical sample preparation system.

          The system can realize the switching of two or three sets of systems. When one set of sample preparation system fails, it can switch to another set of system and return to the designated belt when returning materials.

          All crushers, reducers and samplers in the system are equipped with calibration outlets for single machine performance test.

          The system set up a process to deal with caking ore, greatly reducing the possibility of subsequent cross contamination.

          After the ore type is set, the whole sampling and preparation system can complete the work from sampling to sample preparation, return to ore, data collection, statistics and calculation according to the pre programmed program.

Process description

Reality scene
Automatic sampling and preparation system for iron ore at hulanghu Wharf in Zhoushan
